Details
Main Specifications

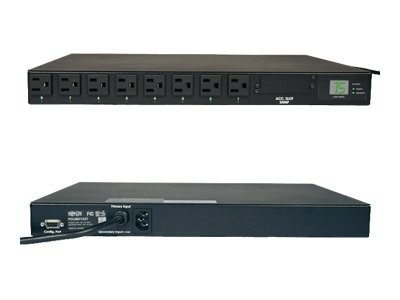

| Product Description | Tripp Lite Metered PDU with Automatic Transfer Switching PDUMH15AT - power distribution unit - 1800 VA |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 1U |
| Weight | 11 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ( 50/60 Hz ) |
| Power Capacity | 1800 VA |
| Output connector(s) | 8 x power NEMA 5-15/20 |
| Dimensions (WxDxH) | 17.5 in x 14.5 in x 1.7 in |
| Manufacturer Warranty | 2 years warranty |
| Designed For | Tripp Lite PDUMH30; Auto Transfer Switch / Metered PDU PDUMH30; Metered PDU with Automatic Transfer Switching PDUMH20; OmniSmart OMNI1500; SmartOnLine SU1000, SU1500, SU750; SmartPro 1000, 1500, SM1000, SMART1500 |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Color | Black |
| Power Device | |
| Input Voltage | AC 120 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 2 x power NEMA 5-15 |
| Power Output Connectors Details | 8 x power NEMA 5-15/20 |
| Output Voltage | AC 120 V ( 50/60 Hz ) |
| Max Electric Current | 15 A |
| Power Capacity | 1800 VA |
| Expansion / Connectivity | |
| Interfaces | 1 x management - 9 pin D-Sub (DB-9) |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Cables Included | 1 x power cable - external - 12 ft 1 x power cable - integrated - 12 ft |
| Features | Wall mountable , current meter, LED indicators, Automatic Transfer Switch (ATS) |
| Compliant Standards | NOM, RoHS |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 14.5 in |
| Height | 1.7 in |
| Weight | 11 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.5 in |
| Shipping Depth | 23.5 in |
| Shipping Height | 6.3 in |
| Shipping Weight | 15.2 lbs |
| Compatibility Information | |
| Designed For | Tripp Lite PDUMH30AT Tripp Lite Auto Transfer Switch / Metered PDU PDUMH30HVAT Tripp Lite Metered PDU with Automatic Transfer Switching PDUMH20AT Tripp Lite OmniSmart OMNI1500LCD Tripp Lite SmartOnLine SU1000RTXL2Ua, SU1000RTXLCD2U, SU1000XLA, SU1500RTXL2Ua, SU1500XL, SU1500XLCD, SU750RTXL2U, SU750RTXLCD2U, SU750XL Tripp Lite SmartPro 1000RM2U, 1000RMXL2U, 1500RM2U, 1500RM2UN, 1500RMXL2UA, 1500SLT, 1500XL, SM1000RM2UTAA, SMART1500CRMXL, SMART1500RMXLN |
