Details
Main Specifications

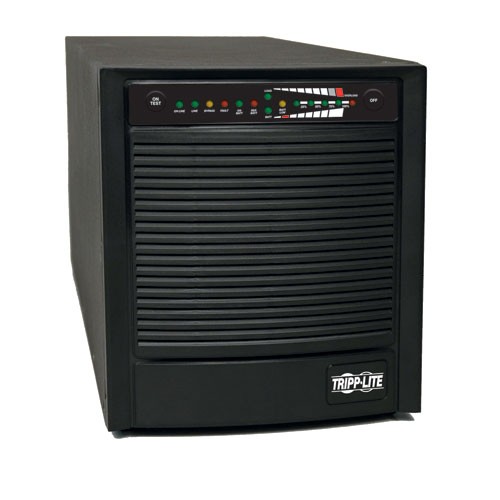

| Product Description | Tripp Lite SmartOnLine SU3000XL - UPS - 2.4 kW - 3000 VA |
| Device Type | UPS - external |
| Weight | 69.2 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 2.4 kW / 3000 VA |
| Output connector(s) | 4 x power NEMA 5-15 ¦ 1 x power NEMA L5-30 ¦ 4 x power NEMA 5-15/20 |
| Battery | 9 Ah |
| Batteries Qty | 6 |
| Run Time (Up To) | 6 min at full load |
| Dimensions (WxDxH) | 9 in x 20.5 in x 10.2 in |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | UPS - external |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 80 - 138 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power NEMA L5-30 |
| Power Output Connectors Details | 4 x power NEMA 5-15 1 x power NEMA L5-30 4 x power NEMA 5-15/20 |
| Output Voltage | AC 120 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 2.4 kW / 3000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | |
| Quantity | 6 |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 6 min at full load |
| Recharge Time | 6 hours |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Cables Included | 1 x power cable - 10 ft |
| Equipment Protection Value | 250000 US Dollars |
| Features | Emergency power off, LED display, audible alarm |
| Compliant Standards | FCC Class A certified, cUL, NOM, UL 1778 |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Min Storage Temperature | 5 °F |
| Max Storage Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% |
| Dimensions & Weight | |
| Width | 9 in |
| Depth | 20.5 in |
| Height | 10.2 in |
| Weight | 69.2 lbs |
